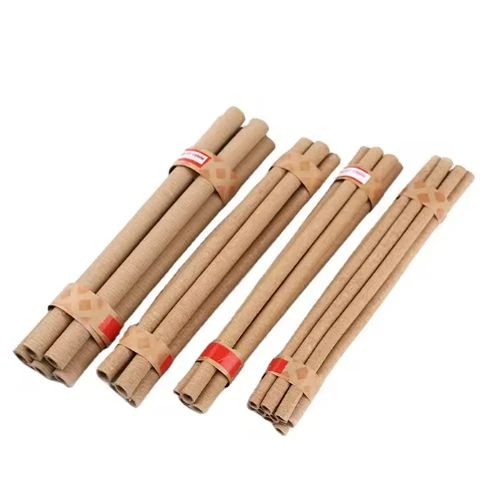

Crepe Paper Tube

Our Crepe Paper Tube is made by winding crepe insulation paper around a mandrel. It is also called crepe insulation sleeve. The surface has wrinkles. So it can bend without cracking. How is it made? We wrap crepe paper around a steel rod. We wind layer by layer. We use glue to bond the layers. Then we pull out the rod. We get a tube. Because the crepe paper can stretch, the tube has some flexibility. It is not completely rigid. A transformer lead wire sleeve factory came to us. They needed a sleeve to put over a copper busbar. The copper busbar was bent. A straight hard tube could not go in. We recommended our Crepe Paper Tube. Our tube can bend up to 30 degrees. It went over the bent copper bar easily. They tried it and were very satisfied. Now they buy 500 meters of our Crepe Paper Tube every month.

We have special tube winding machines. We can make tubes with inner diameters from 6 mm to 100 mm. Wall thickness from 0.5 mm to 5 mm. Length up to 2000 mm. We can also cut to custom lengths. The breakdown voltage of our Crepe Paper Tube is 3 kV through the tube wall. After oil immersion, the breakdown voltage is higher. The compressive strength in the radial direction can handle 100 kg. The crepe structure gives a cushioning effect. The temperature class is B (130°C). Our winding machines are automatically controlled. The tension is stable. The wall thickness is even. There are no bubbles. Customers say our Crepe Paper Tube is reliable.
