C-Class With a Better Price Than NHN

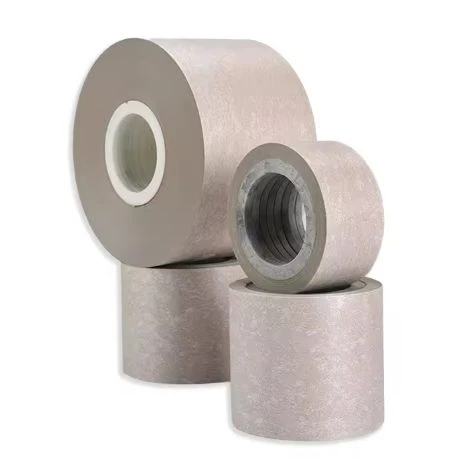

Our AHA insulation paper is a high-end composite. Its structure is aramid paper – polyimide film – aramid paper. The "A" in the middle stands for polyimide film. This film has C-class (220°C) temperature resistance. So our AHA insulation paper can reach C-class. What is the difference between AHA and NHN? NHN uses Nomex plus polyimide. AHA insulation paper uses regular aramid paper plus polyimide. The performance is very close. But the price of AHA is lower. Nomex paper is expensive. We use Metastar™, a domestic aramid paper. The performance is good but the price is much lower. A company making charging pile transformers came to us. Their transformer working temperature often reaches 200°C. They needed C-class material but had a limited budget. We recommended our AHA insulation paper. We sent a sample. They tested it in their transformer for two months. The breakdown voltage and temperature resistance both met the requirements. The price was 25% lower than NHN. They now use AHA insulation paper to replace NHN.
Higher Strength Retention After Aging
We put our AHA insulation paper in an oven at 220°C for 96 hours. Then we tested the tensile strength. The strength retention rate was 85%. The industry standard is 70%. We are 15 percentage points higher than the standard. This means our product ages more slowly. Your customer's product lasts longer. Our AHA insulation paper also has good flame retardancy. We passed the UL94 V0 test. It self-extinguishes after the flame is removed. It is also oil resistant. We soaked it in transformer oil for one month. Then we tested the breakdown voltage. It dropped only 5%. This shows it is suitable for oil-immersed transformers.
High Value for Charging Pile and Railway Transformers
Our AHA insulation paper is mainly used in oil-immersed transformers, C-class dry-type transformers, charging pile transformers, high-speed railway traction transformers, and any application requiring over 200°C temperature resistance. We can punch it into various shapes. We have a punching machine. We can also slit it to very narrow widths. The minimum is 2.3 mm with a tolerance of ±0.2 mm. This AHA insulation paper is one of our best-selling products in recent years. It offers good value for money. C-class performance at a B-class price. Your customers will like it. Your profit margin per ton is also good. Below are the specifications.
|
Parameter |
Value |
|
Max finished width |
1600 mm |
|
Thickness range |
0.08 – 0.45 mm |
|
Temperature class |
H (180°C) – C (220°C) |
|
Min slitting width |
2.3 mm |
We support OEM and ODM. MOQ is 500 kg. Free samples are available. We have an 8-hour response system. Let us help you offer a high-performance alternative that saves money.
